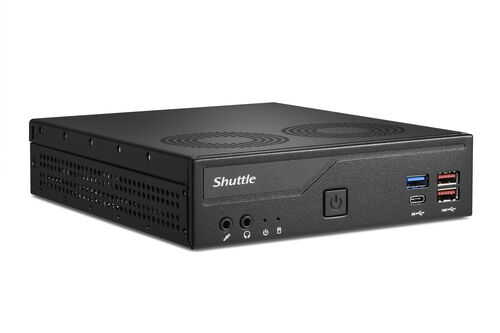

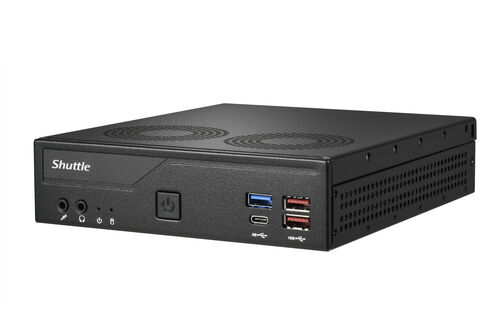

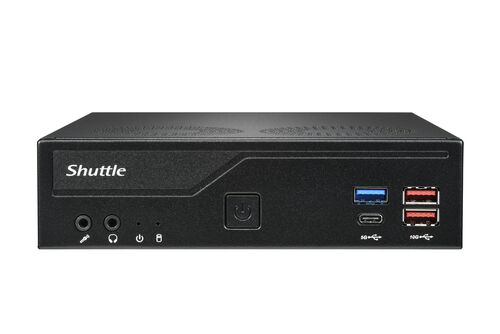

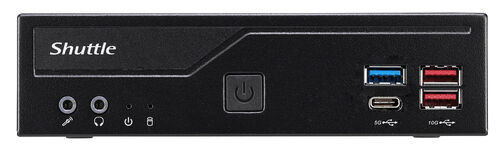

Shuttle Slim PC DH770 , S1700, 2x HDMI, 2x DP , 2x 2.5G LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA
Varenummer: DH770EAN: 0887993006918
Specifikationer
Beskrivelse
| Processor | |
| Built-in processor | No |
| Memory | |
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Graphics | |
| On-board graphics card | No |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I226-LM |

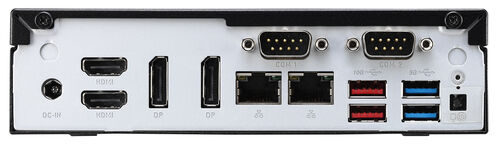

| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
| Design | |
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Metal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 75 mm |
| Performance | |
| Motherboard chipset | Intel H770 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 165 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Drivers included | Yes |
| Other features | |
| Country of origin | China |
