TP-Link | SG2008P | Omada Smar

Varenummer: SG2008P
EAN: 6935364072957
  • Managed
  • L2/L2+
  • Yes
  • Yes
  • Yes
Se alle specifikation
På lager: (1 stk.)
1.076
Levering
Finansiering
Leverings ikonLeveringstid: 1-2 dage
Specifikationer
Beskrivelse

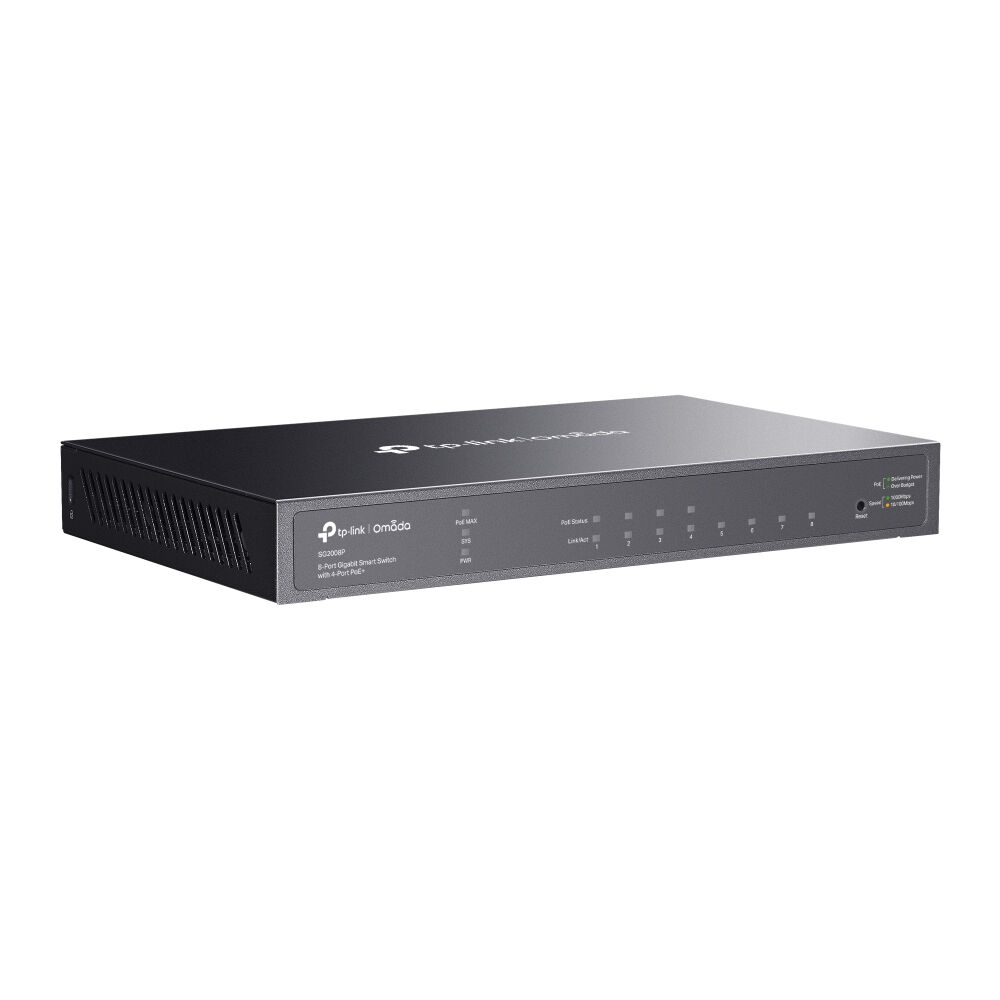

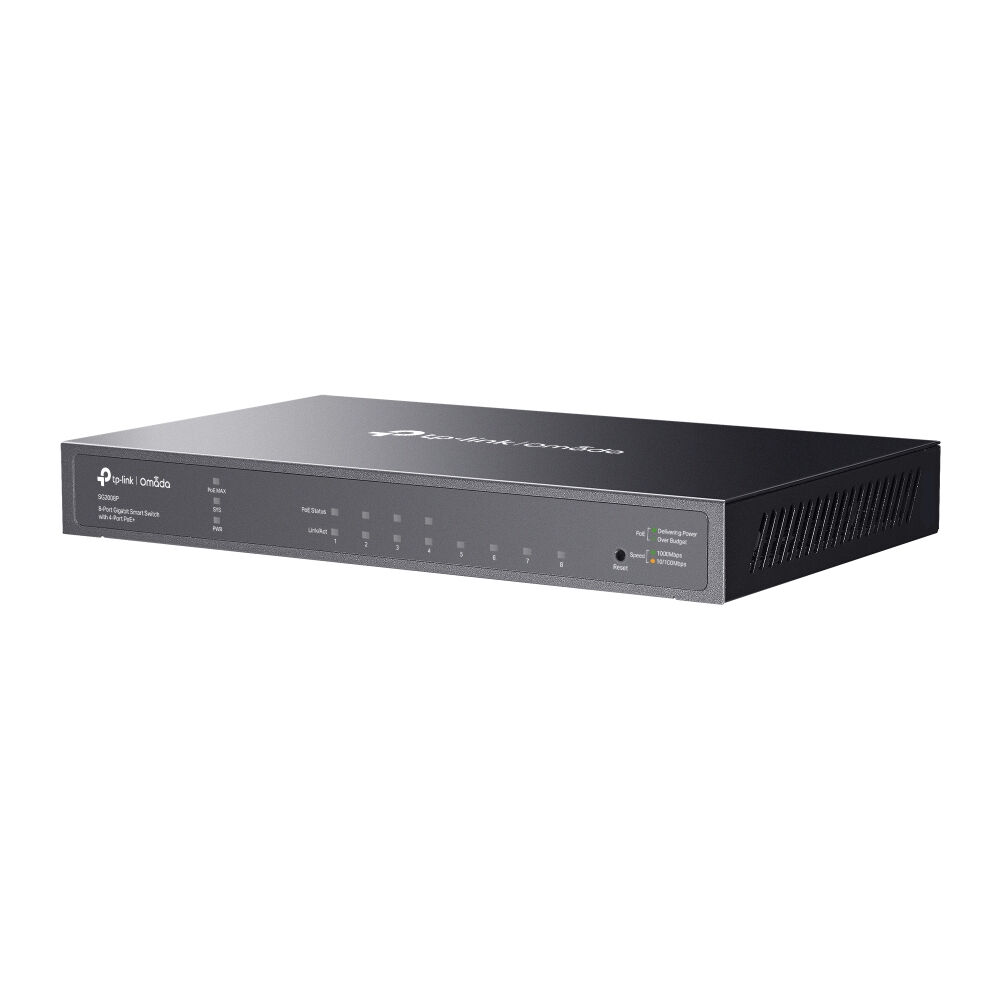

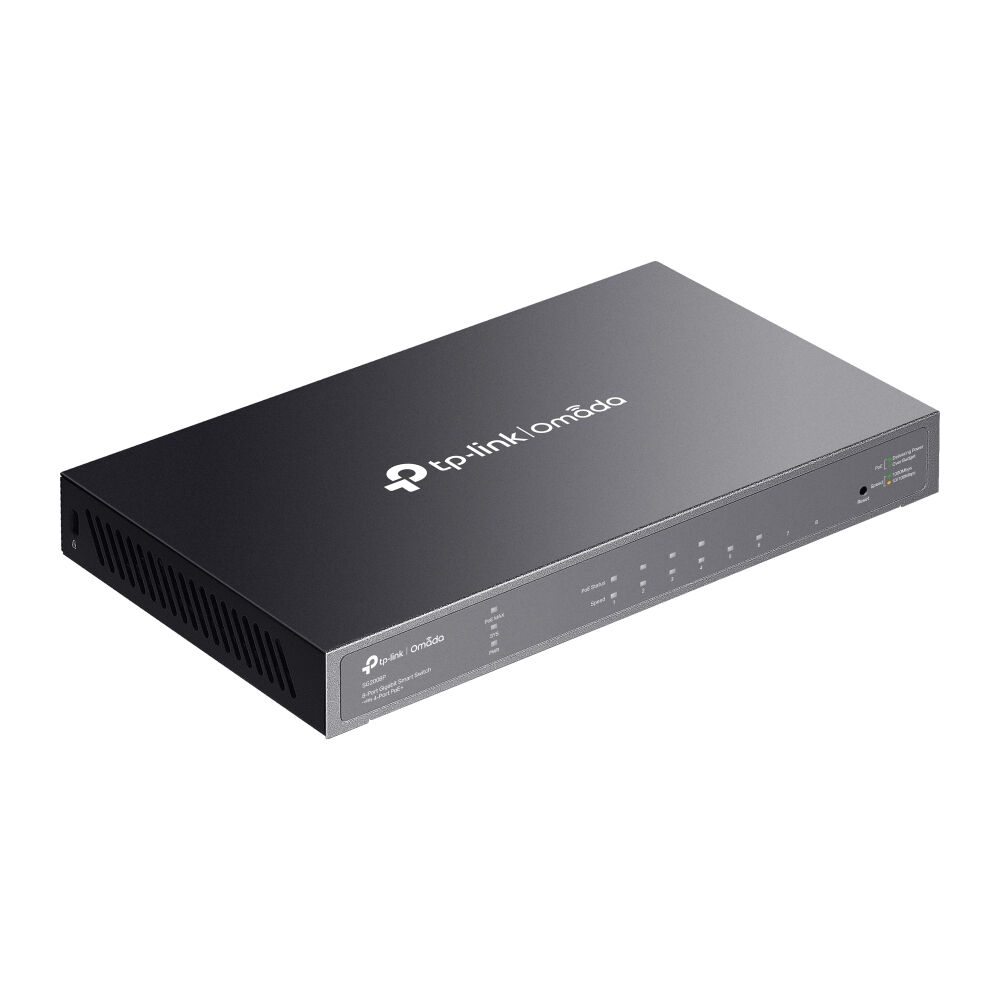

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
Switch type: Managed, Switch layer: L2/L2+
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 8000 entries, Switching capacity: 16 Gbit/s
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE...
Power over Ethernet (PoE)
Rack mountingTP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Se mere
Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportMIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Ports & interfaces

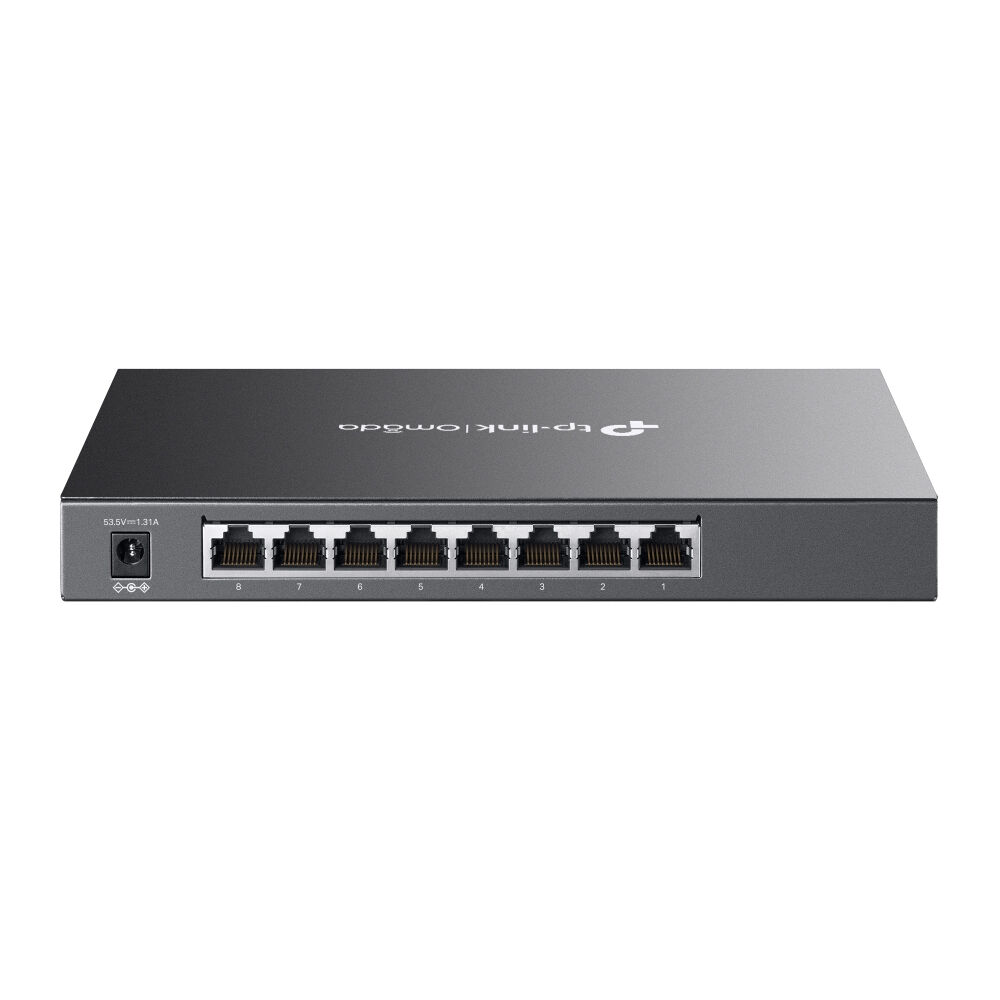

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Auto-negotiationYes
VLAN supportYes
Number of VLANs4094
Data transmission
MAC address table8000 entries
Switching capacity16 Gbit/s
Forwarding rate11.9 Mpps
Number of queues8
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Security
DHCP featuresDHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
IGMP snoopingYes
Security algorithms802.1x RADIUS
MAC address filteringYes
AuthenticationMAC-based authentication, Web-based authentication
Authentication typeRADIUS
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv1/v2c/v3
IPv4 & IPv6 featuresIPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mountingYes
Product colourBlack
LED indicatorsYes
Performance
FanlessYes
Power
Power supply includedYes
Power consumption (max)77.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation263.6 BTU/h
Weight & dimensions
Width209 mm
Depth126 mm
Height26 mm
Packaging content
ManualYes
Packaging data
Package typeBox
Certificates
CertificationCE, FCC, RoHS
Se mere
