Teltonika TRB245 gateway/controller 10, 100 Mbit/s

Varenummer: TRB245000000
EAN: 4779027312750
  • Grey
  • Power
  • SNMP
  • TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned)
  • Yes
Se alle specifikation
På lager: (1 stk.)
1.242
Levering
Finansiering
Leverings ikonLeveringstid: 1-2 dage
Specifikationer
Beskrivelse

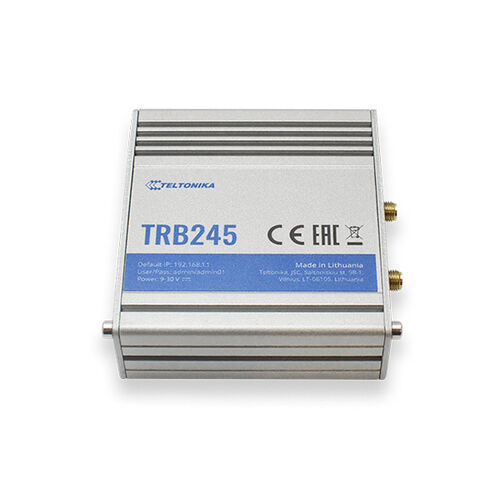

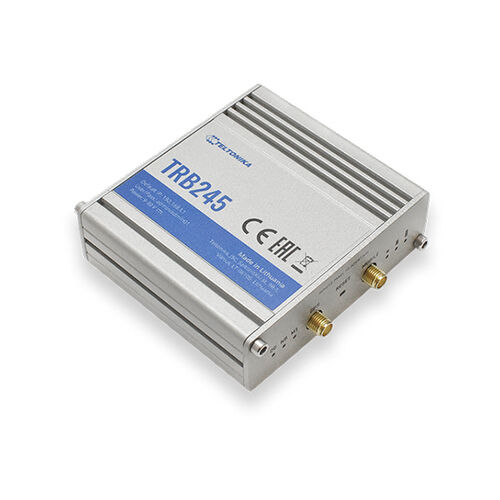

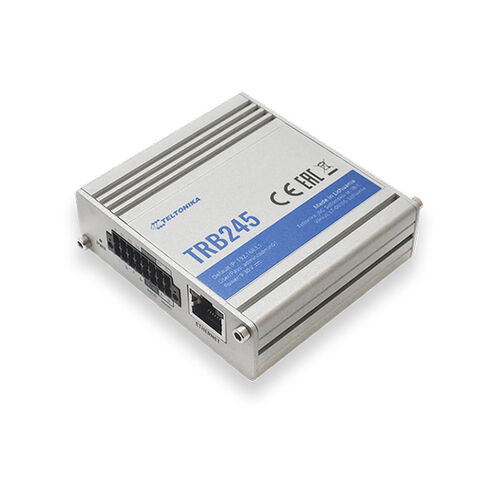

Teltonika TRB245
Product colour: Grey, LED indicators: Power
Management protocols: SNMP, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned),...
Ethernet LAN data rates: 10,100 Mbit/s, Forwarding rate: 150 Mpps, Networking standards: IEEE 802.3, IEEE 802.3u
Console port: RS-232, Serial interface type: RS-232/485
Width: 83 mm, Depth: 25 mm, Height: 74 mmIndustrial LTE Cat 4 Gateway TRB245 is equipped with GNSS receiver, Ethernet port, durable 16 pin connector block. This Gateway board packs all essential features for an industry in one package: secure power connector, I/O ports, serial communication, fast and reliable internet connection. TRB245 can be used to integrate modern and legacy industrial equipment in one solution and with a wide range of software features such as SMS control, Firewall, open VPN, IPSec, RMS user can be ensured that data can be reached securely and without compromises.
Se mere
Design
Product colourGrey
LED indicatorsPower
Protocols
Management protocolsSNMP
Supported network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned)
DMZ supportYes
Network
Ethernet LAN data rates10,100 Mbit/s
Forwarding rate150 Mpps
Networking standardsIEEE 802.3, IEEE 802.3u
Security
VLAN supportYes
Network address translation (NAT)Yes
Ports & interfaces
RS-232 ports1
SIM card slotYes
Console portRS-232
Ethernet LAN (RJ-45) ports1
Serial interface typeRS-232/485
Management features
Quality of Service (QoS) supportYes
Reset buttonYes
Weight & dimensions
Width83 mm
Depth25 mm
Height74 mm
Weight165 g
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)10 - 90%
Certificates
SafetyIEC 62368-1:2014, EN 50385:2017, EN 62232:2017
CertificationCE/RED, EAC, RoHS, WEEE
Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
EN 61000-4-2:2009
EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2
EN 61000-4-3:2006 + A1:2008 + A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2014
EN 61000-4-6:2014
EN 61000-4-11:2004
Logistics data
Harmonized System (HS) code85176990
